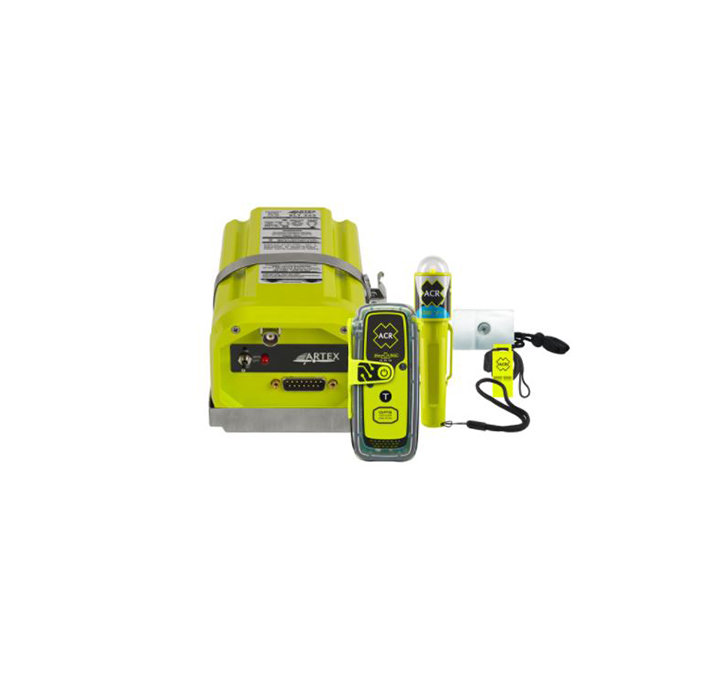

Picture of product ELT-345 Pilot Kit

Part #: 2259.1

Model: ELT-345 Pilot Kit

OEM:

ACR/Artex

Desc:

ELT System w/ PLB and Distress Light

Part Number :
Bendix King logo

ELT 345 Pilot Kit



FEATURES
  •  ARTEX ELT 345 transmits on 406 MHz and 121.5 MHz frequencies
  • Built-in GPS navigational interface
  • Provides aviators with one convenient kit to outfit their aircraft with the latest 406 MHz Emergency Locator Transmitter (ELT)
  • Redundant system to alert Search and Rescue of their location
  • Comes with a remote switch, buzzer, antenna and installation hardware
  • GPS data is embedded within the first emergency transmission
  • Provides Search and Rescue personnel with the aircraft location, within 100 meters
  • ELT 345 (includes Antenna, Remote Switch, + install hardware)
  • ResQLink+ Personal Locator Beacon
  • C-Light H₂O Emergency Distress Light
  • Signal Mirror
  • WW-3 Res-Q Whistle



 *In order to ship hazardous materials (HAZMAT) the shipper must have HAZMAT certified personnel. SEA will provide HAZMAT paperwork along with proper packaging and labeling for shipments directly to our customers.  If the shipment must be sent to another location such as a freight forwarder, SEA will provide the HAZMAT paperwork to the original ship to address only. Please contact  your freight forwarder prior to ordering to verify that they are HAZMAT certified.  SEA is not responsible for issues that arise if your freight forwarder does not have HAZMAT qualified personnel.



SPECIFICATIONS

Operating Frequencies: 406.040 MHz (± 1 kHz) Emission Designator 16K0GID / 121.5 (± 6.075 kHz) Emission Designator 3K20A3X Output Power: 406MHz: 5W for 24 hours @ -20°C to +55°C, 121.5MHz: 50mW for 50 hours @ -20°C to +55°C
Output Connector: BNC Female Activation: Automatic via G-Switch by 4.5 ft/sec (2.3 G) or Manual Activation
Battery: 6 year Lithium, Replacement Battery (P/N: 8322) Temperature: Operating: -20°C to +55°C Storage: -55°C to +85°C
Self Test: G-Switch enabled 406MHz & 121.5 MHz Power NAV system Low Battery Remote Control: ON/ARM/RESET
Antenna: Black Whip Antenna (P/N: 8324) Mounting Tray and Strap : P/N: 8323 (Universal mounting hole pattern fits 90% of existing ELT hole configurations)
weight with tray: 2.0 lbs (907.19 g) measurements: ELT Transmitter with mounting hardware installed: 6.40 (L) x 2.96 (H) x 3.78” (W) inches (16.26 x 7.52 x 9.60 cm)
approvals: Cospas-Sarsat, FAA TSO, Industry Canada GPS: Built-in GPS Navigational Interface (NMEA 0183 or RS 232)



Part Number: Description:
2259.1 ELT System w/ PLB and Distress Light





°C
°C
°C
2259.1
- ELT System w/ PLB and Distress Light
Price Condition Status
$1,095.00 NEW OUTRIGHT REQUEST LEAD TIME
