Picture of product DGL-1

Part #:

Model: DGL-1

OEM:

ACR/Artex

Desc:

Programming Dongle

Part Number :
PLEASE NOTE: If you need additional information about a product on our website, please use the RFQ function or e-mail us for an immediate response.

453-4010
- Dongle, Main Assembly
Price Condition Status
$760.00 NEW OUTRIGHT REQUEST LEAD TIME
455-4010
- Programming Dongle
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
$1,210.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

An Artex ELT with a part number ending in -999 simply indicates that the unit is not programmed and is intended to be programmed via dongle (DGL-1) or wired into the ELT NAV interface (455-6500). Mostly only fleet operators and airlines request this programming ability to avoid reprogramming an ELT during routine maintenance should the ELT be replaced.

Most Artex ELT systems are received by distributors programmed with the ELT serial number for use in the USA. Thus the P/N ends in -366. If the ELT is programmed for another country, then the appropriate labels are placed on the ELT. However, the original dataplate part number remains the same. Dealer/distributors who are authorized to program Artex ELTs are not permitted to change the part number of the ELT.

Therefore, if someone requires an Artex ELT to actually have the -999 part number then this must be requested before the distributor places the order with the factory. Otherwise, programmed ELTs can be programmed with a default hex address and ID to be equivalent to the -999 status. When this is done by an authorized programming facility, the dataplate remains the same but the separate label with country and three digit code becomes blank and the hex ID label indicates the default hex ID.
It depends on the make and model of the ELT. However, most 406 ELTs have a battery life of either 4 or 5 years. Most batteries can transmit for as long as 24 hours.

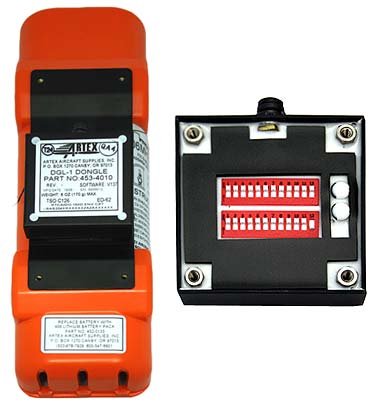

Most commonly utilized by fleet operators, the DGL-1 programming dongle allows an ELT to be transferred between aircraft without having to reprogram or re-register. The Artex DGL-1 is mounted on the ELT cover (see picture). The DGL-1 is not a memory device that stores multiple ELT coding formats. Instead, the aircraft 24 bit address is coded into the dongle by setting a series of small dip switches. The switches are accessed by removing 4 screws that attach the dongle to the ELT top cover. Inside the dongle, there are two rows of 12 switches (see picture). These 24 switches are used to set the aircraft's 24 bit address by way of binary 1s and 0s. 1s are electrical ground, 0s are electrically open.

A few other notes regarding the DGL-1:
  • The connector between the DGL-1 and ELT is only compatible with the C406 and G406 series ELTs.
  • The DGL-1 switches do not have to be set by an approved Artex programming facility.
  • The 24 bit address programmed via the DGL-1 switches overwrites any other programming on an ELT once it is powered on.
PLEASE NOTE - Publications are for Reference Only
