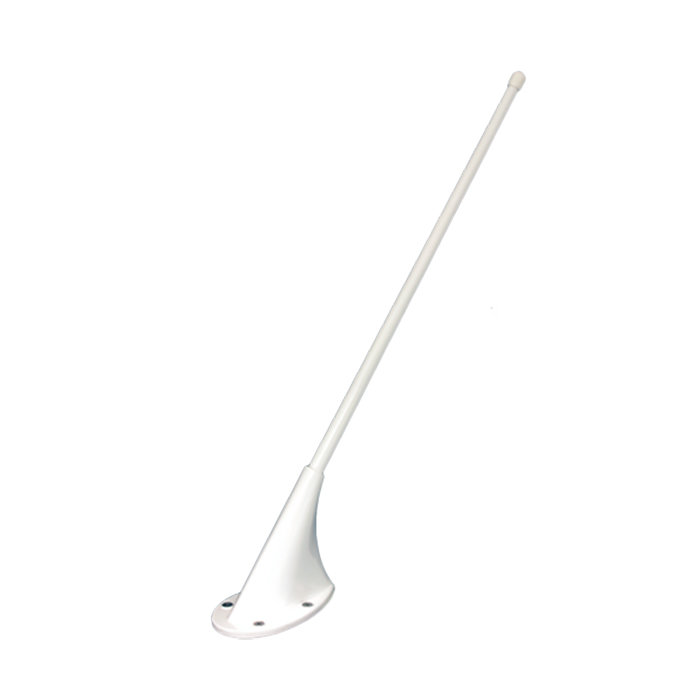

Picture of product CI-317-1

Part #: 110-338

Model: CI-317-1

NSN:

5985-01-552-5606

OEM:

ACR/Artex

Desc:

ELT Antenna, Tri-band, Rod, SI

Part Number :


CI-317-1



FEATURES

  • Tri-Band ELT antenna
  • Single connector
  • All 3 ELT frequencies covered with one BNC connector
  • Frequencies:  121.5, 243, 406 MHz



SPECIFICATIONS

tso: C91a, C126 power: 25 Watts
Polarization: Vertical Radiation pattern: Omni-directional
impedence rf: 50 Ohms Weight: 0.45 lbs.
height: 15.5" altitude: 50,000 ft.
finish: Polyurethane Enamel Temperature: -55 to +85 C
part number: Description:
110-338 White ELT Rod Antenna, Tri-band
110-338-01 Black ELT Rod Antenna, Tri-band



Serial # 762662
Condition NEW
Mods -
Tag Date 09/25/24
Shop ACR Electronics Inc.
Warranty 1 Year
110-338
- ELT Antenna, Tri-band, Rod

NSN: 5985-01-552-5606

Price Condition Status
$1,595.00 NEW OUTRIGHT 1 IN STOCK
REQUEST AR OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

"As Removed" or condition "AR" parts are in the same condition as they were removed from an aircraft. The reasons for removal include aircraft upgrades, teardowns, or certain types of incidents. In most cases, AR parts have not been inspected or tested. They do not include airworthiness certification such as FAA Form 8130 or EASA Form 1. Southeast Aerospace encourages avionics in this condition to be tested and recertified before using in an aircraft.
