Bell 407 Operator Station
Certified Option
STC certification provides for a seamless path to FAA approved installationQuality
Designed and manufactured in-house ensuring full control over qualityOperator-Oriented
Two 15" displays independently adjustable, up to a maximum of 20°Space Saving
Maintains three aft cabin passenger seats

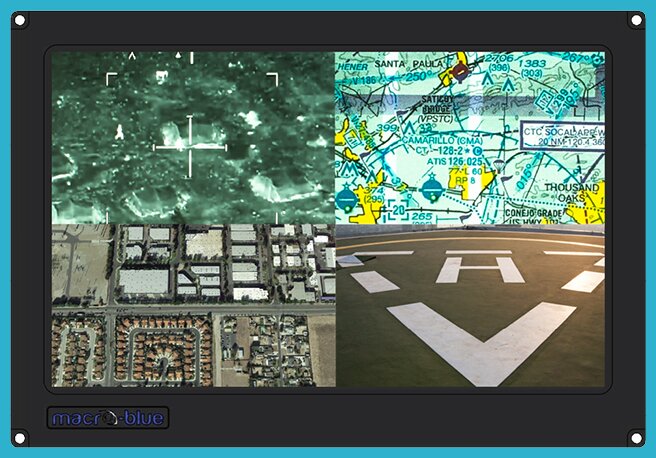

MB15W

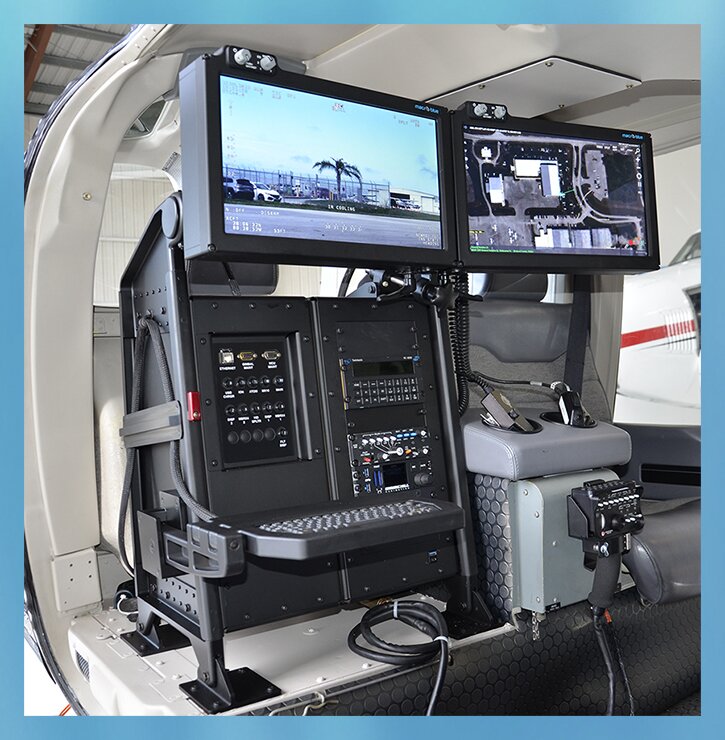

Southeast Aerospace designed and manufactured the operator station as an ideal mounting solution for housing mission equipment in the Bell 407 helicopter to support Airborne Law Enforcement (ALE) missions. Obtaining STC certification for the operator station provides a seamless path to meeting the regulatory and safety requirements of an FAA-approved installation in the Bell 407, preventing additional costs or requirements for both the customer and installation facility.
The operator station was designed to support the Tactical Flight Officer’s (TFO) mission as a primary focus. Dual monitors provide an extended viewing area for mission sensor and mapping data, and the operator station cabinet offers ample space for housing a fully integrated mission suite of their choosing.
The operator station cabinet provides mounting provisions for electrical equipment such as video monitors, communication control panels, and recording equipment to be installed by the end-user.
The mission panel includes provisions for DZUS mounted equipment as well as a dedicated panel for circuit breakers, switches, and maintenance ports. In addition, it is equipped with a fold-down keyboard tray, installed on the left side of the operator station, which can be securely folded up and stowed with a quarter-turn latch for taxi, takeoff, and landing operations.

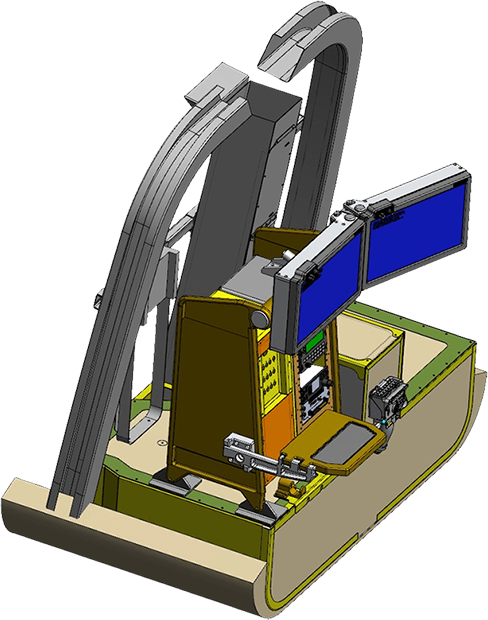

The standard configuration provides provisions for two Macro-Blue MB15W 15” tactical displays. The two identical monitor frames are independently adjustable. In addition, each monitor pivots at the center of the assembly allowing the monitors to be independently rotated towards the operator, up to a maximum of 20° and locked in place.
The monitor mount assembly also features a tilting function controlled through a knob below the monitors, giving the monitor mount assembly a tilt of up to 15° to customize the TFO’s viewing angle.
The operator station was designed to utilize an integrated electical disconnect panel allowing for quick and easy removal of the entire cabinet for maintenance and inspections.
SEA's operator station is machined and fabricated from lightweight aerospace aluminum billet and sheet metal.

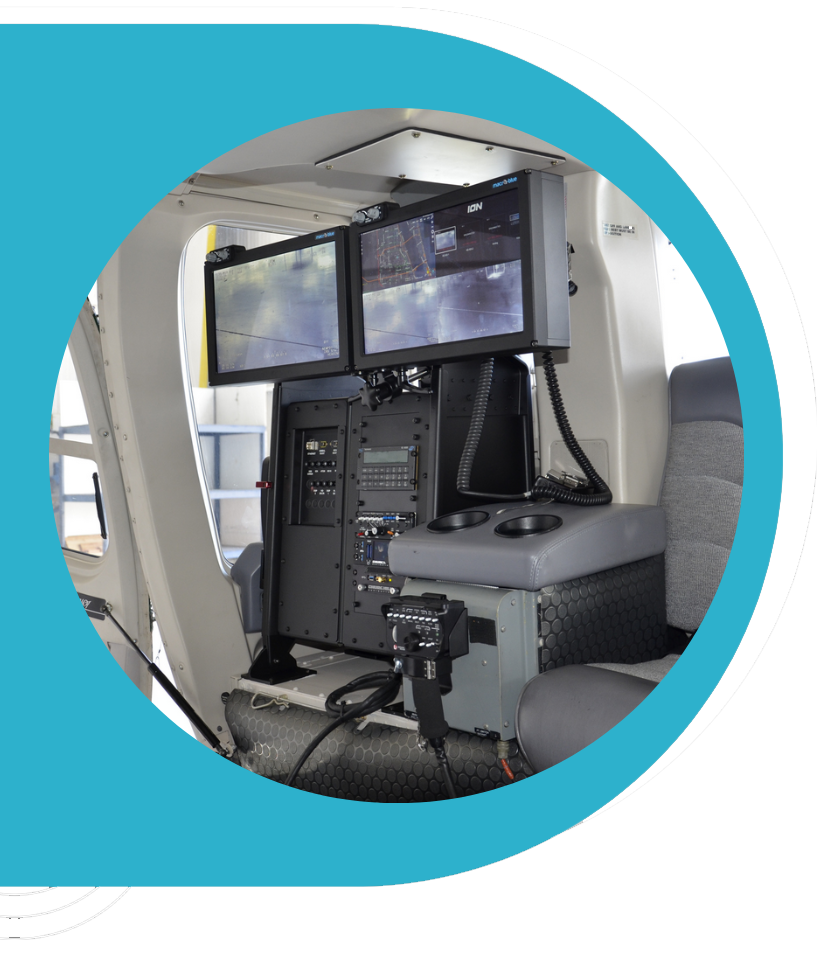

The SEA operator station replaces the left-side aft-facing passenger seat in the Bell 407, maintaining three aft cabin passenger seats. The existing left-side aft-facing passenger seat is removed and replaced as part of the modification.
No changes to the rotorcraft interior are required as the operator assembly poses no interference with the existing interior design. Permanent modifications are negligible during this installation so the aircraft can be returned to its original configuration if desired.
“With a dedication to local, state, and federal law enforcement agencies, SEA is proud to announce STC certification for the latest addition to our special mission product line, the Bell 407 operator station. We worked closely with some of the finest TFOs and our engineering team to design a comfortable, effective, and practical operator workstation. By having certified options, we can help agencies access high-quality products while still working with their local avionics’ modification team. We look forward to providing more options to the ALE community as we continue to develop and certify additional products."
-Nathan Hernandez
Business Development Manager
