Model: TFM-500

OEM:

Technisonic

Desc:

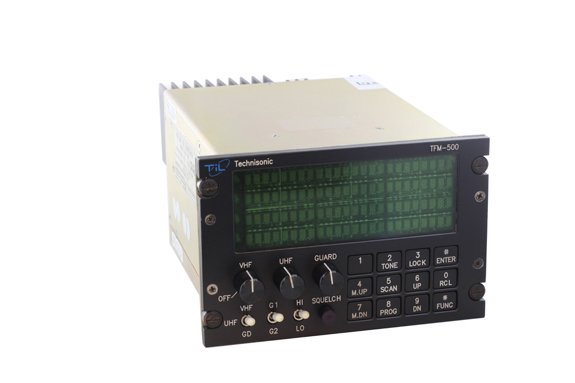

Airborne VHF/UHF FM Transceiver

Part Number :



TFM-500
FEATURES
  • Multi-Band Airborne FM
  • Two band VHF and UHF band FM transceiver
  • Covers 138-174 MHz and 403-512 MHz
  • 200 memory positions per band
  • Capable of operating in the combined or dual mode operation
  • Two channel synthesized VHF guard receiver
  • 3.75" high, DZUS mount, self-contained transceiver weighing only 5 lbs
  •



SPECIFICATIONS VHF MODULE
Frequency Range: 138.000 MHz to 174.000 MHz ,  403-512 MHz Tuning Increments:  2.5kHz
Operating Mode: F3E simplex or semi-duplex Channel Spacing:  12.5 kHz, 25 kHz or 30 kHz as per applicable FCC and DOC spec
Memory Positions: 200 Channels Physical Dimensions: Approx. 8" x 3.75" x 5.75"
Weight: 4.7 lbs Temperature Range:  -45°C to +70°C
Altitude: 50,000 ft  Power Requirement: 28 VDC Receiver - 600 ma 1 Watt transmit - 1.3 amps, 10 Watts transmit - 2 amps
Environmental: RTCA DO-160C (B2, D1)XXX(B,M,N)XXXXXXABBXXXZXXX Certification:  FCC and DOC Type Approved
Guard Receiver:  2 Channel Synthesized  CTCSS Squelch Capability:  Encodes/Decodes all 64 Available Tones
DPL/DCS Capability:  All Available Digital Sq. Codes  DTMF Encoder:  All standard DTMF tones Supported
Audio Output:  500 mw into 600 Ohms  Speaker Output:  2.5 Watts into 4 Ohms
Back Lighting:  28V (standard) or 5V (specify)  Display:  Green (standard), red (optional)
Audio Distortion:  Less than 5%  Transmitter RF Power Output:  1 Watt or 10 Watts
Frequency Stability:  ± 0.0005%



SPECIFICATIONS UHF MODULE
Frequency Range: 403 MHz to 512 MHz  Tuning Increments:  2.5kHz
Operating Mode: F3E simplex or semi-duplex Channel Spacing:  12.5 kHz, 20 kHz or 25 kHz as per applicable FCC and DOC spec
Memory Positions: 200 Channels Physical Dimensions: Approx. 8" x 3.75" x 5.75"
Weight: 4.7 lbs Temperature Range:  -45°C to +70°C
Altitude: 50,000 ft  Power Requirement: 28 VDC Receiver - 700 ma 1 Watt transmit - 1.3 amps, 10 Watts transmit - 2 amps
Environmental: RTCA DO-160C (B2, D1)XXX(B,M,N)XXXXXXABBXXXZXXX Certification:  FCC and DOC Type Approved
Guard Receiver:  2 Channel Synthesized  CTCSS Squelch Capability:  Encodes/Decodes all 64 Available Tones
DPL/DCS Capability:  Encodes/Decodes all Available Digital Sq. Codes  DTMF Encoder:  All standard DTMF tones Supported
Audio Output:  500 mW into 600 Ohms Speaker Output:  2.5 Watts into 4 Ohms
Back Lighting:  28V (standard) or 5V (specify)  Display:  Green (standard), red (optional)
Audio Distortion:  Less than 5%  Transmitter RF Power Output:  1 Watt or 10 Watts
Frequency Stability:  ± 0.0025%
Part Number:  Description:
971083-1 Green Display and 28V back lighting
971083-1 (5V) Green Display and 5V back lighting
971083-3 Red Display and 28V back lighting
971083-3 (5V) Red Display and 5V back lighting



971083-1
- VHF/UHF Transceiver 138-174, 403-512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
971083-1 (5V)
- Transceiver, 138 - 174, 403 - 512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
971083-3
- Transceiver, 138 - 174, 403 - 512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
971083-3 (5V)
- Transceiver, 138 - 174, 403 - 512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Many operators of the KFM-985 only utilized the 138-174 MHz frequency ranges. Therefore, if only these frequencies are desired, then Southeast Aerospace recommends the TFM-138B from Technisonic. If the dual bands of 138-174 and 403-512 MHz are desired, then Southeast Aerospace recommends the TFM-500 from Technisonic.

Guard is a term used to describe a special option on tactical radios. This special option is a dual monitoring system that continually monitors emergency channels (either a preset or selected channel, depending on unit options) for broadcasts, while still receiving on the main receiver. The radio will annunciate a notice when there is a broadcast on the emergency channel. Annunciation type depends on the particular unit and set up options.

This feature is particularly useful for search and rescue mission aircraft.

For more information on SEA offered products with a "guard" feature, click here.
