Part #:

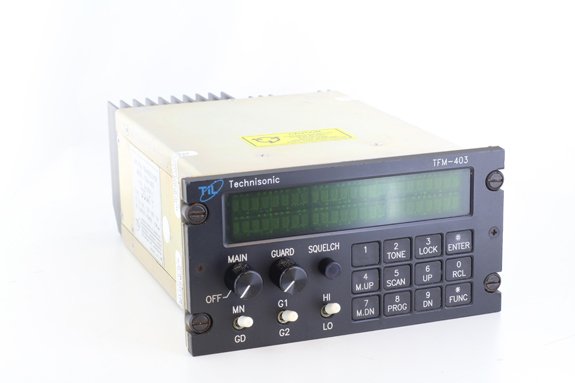

Model: TFM-403

OEM:

Technisonic

Desc:

UHF/FM Transceiver, 403 - 512 MHz

Part Number :





TFM-403
FEATURES

  • Two line LED matrix display
  • Covers from 403.0000 MHz to 512.0000 MHz in 2.5 KHz steps
  • 12 button keypad
  • Direct Entry simplex mode
  • Programmable two channel guard receiver
  • DTMF encoder
  • Separate CTCSS and/or a DPL/DCS (Digitally Coded Squelch)
  • 90 second transmitter time out
  • Direct/repeat function for simplex "talkaround"
  • Keyboard lock out feature





SPECIFICATIONS

Physical dimensions: 8.0 x 3.0 x 5.75 inches Weight: 3.1 Lbs. (1.4 Kg)
Altitude: 50,000 ft. Temperature range: -45 deg C to +70 deg C
Humidity: 95% Non-condensing Power requirement 28 VDC,Receive - 700 mA,1 Watt transmit - 1.3 amps,10 Watts transmit - 2.0 Amps
Frequency range: 403.000 MHz to 512.000 MHz Operating mode: F3E simplex or semi-duplex
Display color: Green (standard) or Red (specify) Back lighting: 28 VDC or 5 VAC (specify when ordering))
Power output 1 Watt or 10 Watts, front panel selectable Output impedance: 50 ohms
Part Number: Description:
 941059-1 UHF/FM Transceiver, 403 - 512 MHz
 941059-1 (5V) UHF/FM Transceiver, 403 - 512 MHz
 941059-2 UHF/FM Transceiver, 403 - 512 MHz
941059-2 (5V) UHF/FM Transceiver, 403 - 512 MHz



941059-1
- UHF/FM Transceiver, 403 - 512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
941059-1 (5V)
- Transceiver, 403 - 512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
941059-2
- Transceiver, 403 - 512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
941059-2 (5V)
- Transceiver, 403 - 512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
