Part #: S65-8280-18

NSN:

5985-01-554-6052

OEM:

Sensor Systems

Desc:

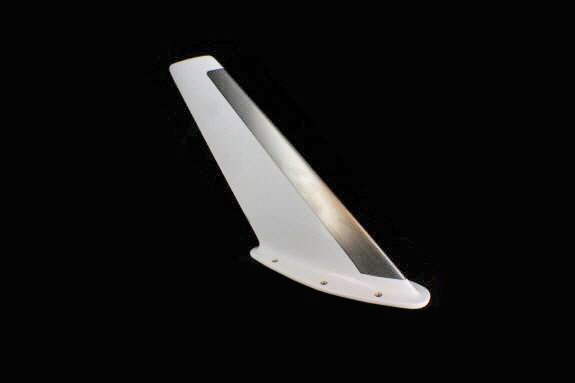

VHF Antenna

Part Number :


S65-8280-18



FEATURES

  • VHF Antenna
  • Broadband
  • All-metal
  • DC grounded to provide lightning protection
  • Stainless steel leading edge for gravel protection
  • Eliminates "P" static
  • Hermetically sealed
  • For commuter and corporate aircraft with speeds up to 600 mph
  • Interchangeable with Collins 37R-2, VC10-126, DMC 60 and other VHF communications antennas
  • Federal & Military Specs: FAA TSO C37b and C38b. MIL-STD-810, MIL-E-5400, MIL-A-6271, MIL-A-7772 (ASG), MIL-A-9094, MIL-B-5087



SPECIFICATIONS
Frequency: 116-156 MHz VSWR: 2.3:1
Pattern: Omni/Az Cos/El Polarization: Vertical
Impedance: 50 ohms  Power: 100 watts
Lightning Protection: DC grounded Weight: 2.8 lbs

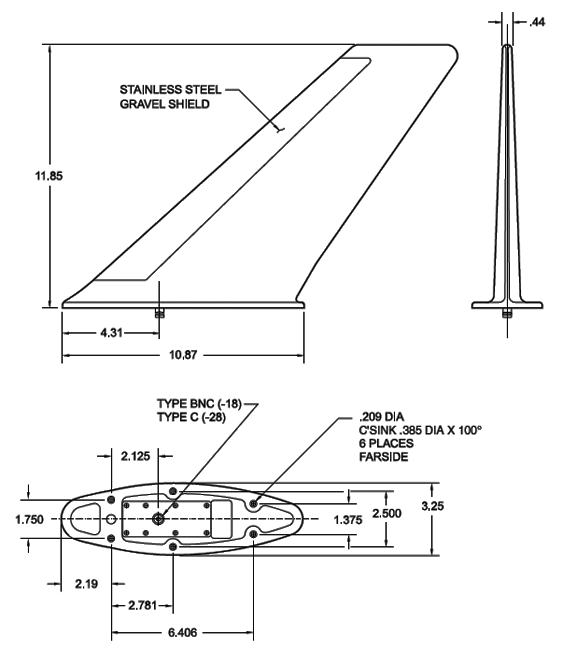

Height: 11.85 in Material: A356-T61 aluminum casting
Finish: Skydrol resistant enamel Connector: BNC
Drag: 1.5 lbs Mach .85 @ 35,000 ft Side Load: 12 psi
Temperature: -60°F to +185°F Altitude: 60,000 ft
Vibration:  14 G's

Part Number: Description:
S65-8280-18 VHF Antenna
S65-8280-28 Same as above except "C" type connector. Fokker 50/100.



S65-8280-18
- VHF Antenna

NSN: 5985-01-554-6052

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
