Part #: 4019286-901

Model: VG-14H

NSN:

6615-01-329-9596

OEM:

Honeywell

Desc:

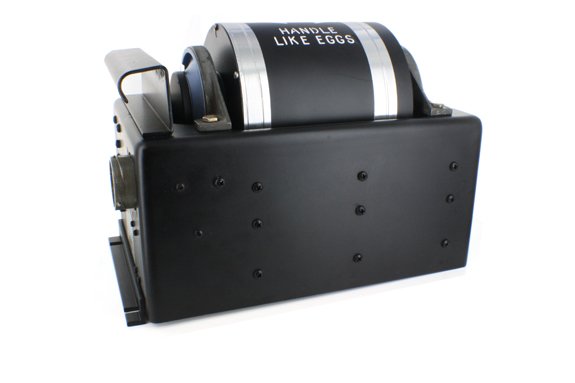

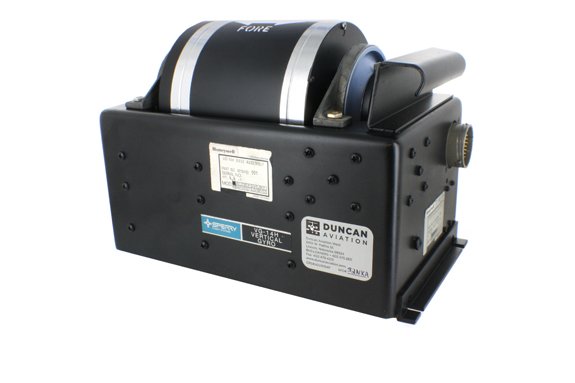

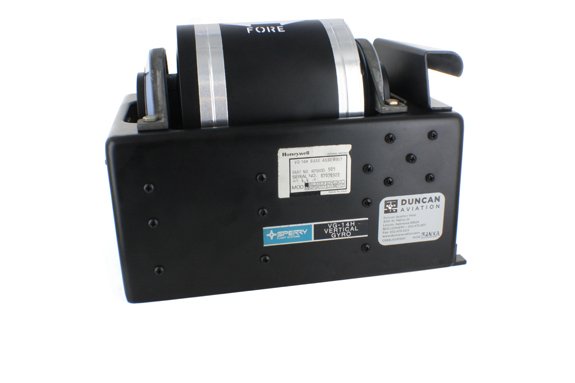

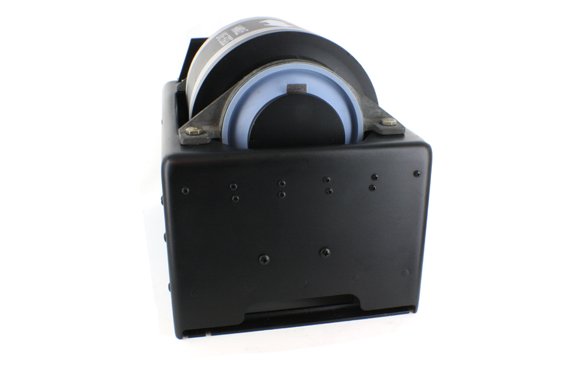

Vertical Gyro

Part Number :



VG-14H
FEATURES
  • Provides three-wire synchro output signals that are electrical analogs of the aircraft pitch and roll attitudes
  • Three-wire output signals used to drive flight instruments
  • Two-wire transformer isolated pitch and roll output signals can be used to supply attitude reference information for flight director, Helipilot, and radar stabilization
  • Gyro roll freedom is unlimited (+- 360 degrees)
  • Pitch gimbal freedom is +- 85 degrees
  • Gyro verticality is maintained by gravity-sensing accelerometers and torque motors



SPECIFICATIONS

Dimensions: 10.4"L x 6.53"W x 7.63"H (shock mounts extended) Weight: 9.4 lbs.
Power (Start): 115V, 400Hz, 80VA Power (Operate): 115V, 400Hz, 40VA
Rotor Speed: 22000 RPM Erection Time: 3 min
Verticality Error: 0.25 deg
Part Number: Description:
4019286-901 Standard version, Vertical Gyro
4019286-902 3-wire inverted synchro output, Vertical Gyro



Serial # 89121315
Condition OH
Mods A-F
Tag Date 01/24/22
Shop Gyro Specialist Inc.
Warranty 6 Months
4019286-901
- Vertical Gyro

NSN: 6615-01-329-9596

Price Condition Status
$4,250.00 OH OUTRIGHT 1 IN STOCK
$2,250.00 OH EXCHANGE 1 IN STOCK
