Part #: MI-585222-1

Model: RT-3002

OEM:

Honeywell

Desc:

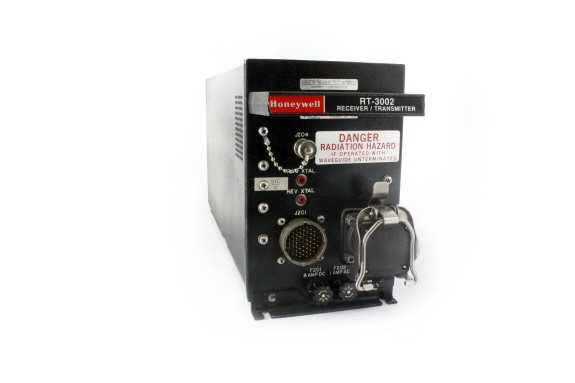

Radar Transceiver

Part Number :
Honeywell Logo


RT-3002
FEATURES
  • Radar receiver/transmitter used in Primus 300SL Radar System
  • Housed in short 1/2-ATR case
  • 8kw peak nominal power output

NOTE: RT-3001 is only used with the DI-3003 standard size color indicator RT-3002 is only used with the DI-2007 slimline color indicator



SPECIFICATIONS

Dimensions: 5.06"W x 8.12"H x 14.4"D Weight: 13.3
TSO: Category D2AJXXXXXXBBBBB, Class 7 Operating Frequency: X-Band, 9375 +-30 MHz
Part Number: Description:
MI-585222-1 Radar Transceiver



MI-585222-1
- Radar Transceiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Weather radar transceivers use a magnetron which is basically a cathode emission device. The magnetron is subject to deteriorization due to aging. Therefore, it is recommended to perform some type of periodic maintenance to detect and correct the effects of aging. This reduces the chance of an in-service failure.

An annual, routine test of the following parameters should made:

- Power output
- Transmitter frequency
- AFC voltage
- Sensitivity (MDS)

Ideally, the test should take place between December and March prior to the peak thunderstorm season.
As of January 2010, the only Multi Function Displays that are compatible with the Primus 300 or Primus 400 radar systems are the Honeywell MFRD and the Universal MFD-640. For pricing and additional information on these MFDs, please submit an RFQ to SEA today.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.
