Part #: | CI-505 |
---|---|
Model: | CI-505 |
Desc: | Diplexer Dual VOR/GS |
OEM: | Comant |
NSN: | |
---|---|
Sched-B: | 8807100010 |
ECCN: | 7A994 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
Dual VOR/GS Diplexer (CI-505)
Frequency · 108-118 MHz & 329-335 MHz
Dual VOR coupler/single glide slope diplexer allows the operation of two VOR receivers and one glide slope receiver from one VOR/glide slope antenna. Compact design makes installation easy. Also available with TNC connectors.
Electrical :
Frequency | 108 - 118 and 329 - 335 MHz |
VSWR | 1.5:1 Maximum |
Insertion Loss | 0.5 dB Maximum |
Isolation | 20 dB Minimum between any receiver port |
Impedance RF | 50 Ohms |

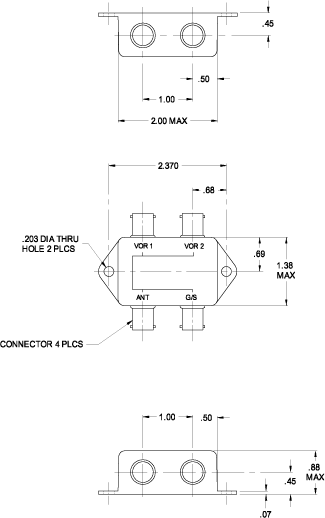

Mechanical :
Weight | 0.20 lb. Maximum |
Height | 0.88 in. Maximum |
Material | Die Cast Aluminium |
Finish | Aluminium |
Connector | (see above P/N's to order the choice of connector) |
Environmental :
Internal Mount |
Federal Specifications :
FAA TSO | C34c, C36c, C40a |
Part Number | Description: |
---|---|
CI-505 | Diplexer Dual VOR Glide Slope with a BNC Connector |
CI-505-TNC | Diplexer Dual VOR Glide Slope with a TNC Connector |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
