Part #: | CI-305 |
---|---|
Model: | CI-305 |
Desc: | DME/Transponder Antenna |
OEM: | Comant |
NSN: | 5985-01-653-4314 |
---|---|
Sched-B: | 8529104000 |
ECCN: | 7A994 |
Cage Code: | 51351 |

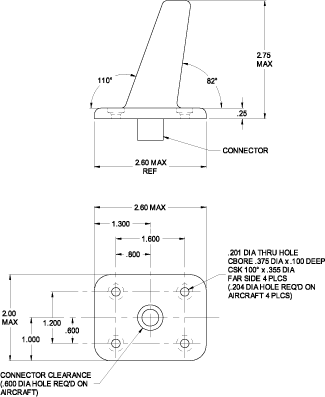

(CI-305 Series)
Electrical :
Frequency | 960 - 1220 MHz |
VSWR | 1.8:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Equivalent of l / 4 Stub |
Impedance RF | 50 Ohms |
Resistance DC | Open Circuit |
Power RF | 1 KW Peak |
Mechanical :
Weight | 0.3 lb. Maximum |
Height | 2.75 in. Maximum |
Material | Molded Radome |
Finish | White Polyurethane Enamel (Standard) |
Connector | (see above P/N's to order the choice of connector) |
Gasket | B30503 |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 70,000 ft. |
Air Speed | 400 Knots TAS at 35,000 ft. |
Federal Specifications :
RTCA Environmental | DO-160A |
FAA TSO | C66b, C74c |
Environmental Category | AE1/A/JXXXXXXXXXXX |
RTCA MOPS | DO-144, DO-189 |
Part Number: | Description: |
---|---|
CI-305 | DME Transponder Miniature High Speed Antenna with a BNC Connector |
CI-305-2 | DME Transponder Miniature High Speed Antenna with a TNC Connector |
CI-305-3 | DME Transponder Miniature High Speed Antenna with a C Connector |
Serial # | 2222 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 06/05/24 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
NSN: 5985-01-653-4314
Price | Condition | Status |
---|---|---|
$450.00 | NEW OUTRIGHT | 1 IN STOCK |
