Part #: CI-275
Model: CI-275
Desc: UHF Radiotelephone Antenna
OEM: Comant
NSN: 5985-01-608-1662
Sched-B: 8529109000
ECCN: 7A994
Cage Code: 51351
Part Number :

UHF Radiotelephone (CI-275 Series)

Frequency · 406-512 MHz

Wide band UHF antenna designed for high-performance aircraft over the full frequency range of 406-512 MHz. Low profile, blade-type antenna is encased in a low drag, low weight molded body to ensure high reliability. The CI-275 comes standard with BNC connector. Other connectors available. See P/N's to order a different connector.



Electrical :

Frequency 406 to 512 MHz
VSWR 2.0:1 Maximum
Polarization Vertical
Radiation Pattern Equivalent of l / 4 Stub
Impedance 50 Ohms
Power RF 50 Watts Average

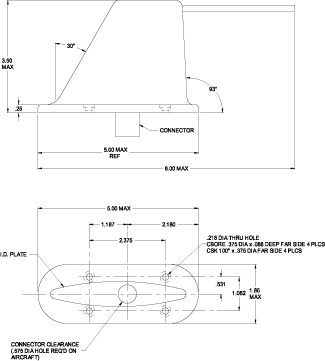

Mechanical :

Weight 0.5 lb. Maximum
Height 3.5 in. Maximum
Material Lexan Housing
Finish White Polyurethane Enamel
Connector (see above P/N's to order the choice of connector)



Environmental :

Temperature -55°C to +70°C
Altitude 50,000 ft.
Air Speed 600 Knots TAS at 25,000 ft.



Part Number Description:
CI-275 UHF Radiotelephone Antenna with a BNC Connector
CI-275-2 UHF Radiotelephone Antenna with a TNC Connector
CI-275-3 UHF Radiotelephone Antenna with a C Connector
CI-275-5 UHF Radiotelephone Antenna with an N Connector



CI-275
- UHF Radiotelephone Antenna

NSN: 5985-01-608-1662
