Part #: | CI-248-5 |
---|---|
Model: | CI-248-5 |
Desc: | VHF Comm Antenna |
OEM: | Comant |
NSN: | |
---|---|
Sched-B: | 8529104000 |
ECCN: | 7A994 |
VHF Communications (CI-248-5)
Frequency · 118-137 MHz
This sleek new design was developed for Cessna's 182and 182T aircraft. Impressive with its low-drag and good looks, the CI-248-5 has been credited with adding 2 to 3 Knots on certain aircraft. The first totally new look in VHF antennas in decades, the CI-248-5 was tested to some of the most rigorous requirements outlined in RCTA DO-160D. Rated to 350 Knots for most high powered twins, the antenna is also certified for helicopter applications. Truly unique, the CI 248-5 is the only VHF antenna with a built-in notch filter, this allows the CI248-5 to be placed in close approximaty to GPS antennas without interferance issues.
Electrical :
Frequency | 118 - 137 MHz |
VSWR | 2.5:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance RF | 50 Ohms |
Power | 25 Watts |
Harmonic Rejection | 80 dB Typical |

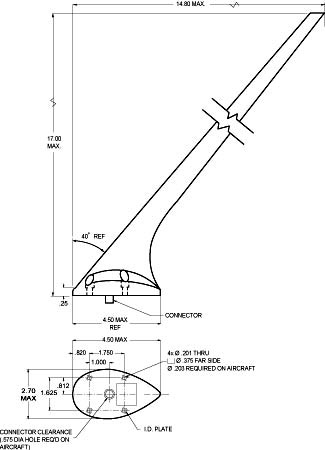

Mechanical :
Weight | 0.52 lb. Maximum |
Height | 17 in. Maximum |
Material | Molded Radome |
Finish | White Polyurethane Enamel |
Connector | BNC |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 350 Knots TAS at 35,000 ft. |
Federal Specifications :
RTCA Environmental | DO-160D |
FAA TSO | C37d, C38d |
Environmental Category | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
RTCA MOPS | DO-186A |
Part Number | Description: |
---|---|
CI-248-5 | VHF Blade Antenna |
Serial # | 760899 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 06/04/24 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
Price | Condition | Status |
---|---|---|
$635.00 | NEW OUTRIGHT | 1 IN STOCK |
