Part #:

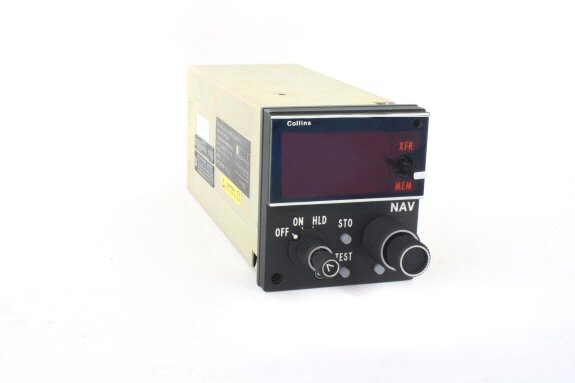

Model: CTL-32G

OEM:

Collins Aerospace

Desc:

G7632-101, Nav Control

Part Number :


CTL-32G



FEATURES

  • Digital Display Navigation Control designed to simultaneously tune the VIR-32, and DME-42 radios
  • CTL-32G controls are direct fit and form replacement for existing original CTL-32 Controls
  • CTL-32G controls offer new design incorporating all digital architecture and LED displays which enhance reliability and extend performance
  • CTL-32G controls include lighting bus that can be strapped for either 5 or 28 volt applications
  • Can be configured to permit tuning DME-42 to nonpaired military TACAN channels in range of 133.33-135.95 MHz
  • Serial tune control unit
  • Provides active and preset frequency display
  • Four frequency memory storage beside active and preset frequency
  • Models available with black or gray bezel (see table below)
  • Models available with variations of ON/OFF/HOLD/NORM selection and Volume control (see table below)



SPECIFICATIONS

Weight: 1.2 lbs. Dimensions: 2.375"W x 2.625"H x 7.52"L
TSO: C37c, C34d, C36d, C38e, C40b, C66b, C41c, C74e RTCA Document: DO-160A
EUROCAE: MPS/WG 8/1/71; ED-14A DEUTSCHE BUNDESPOST FTZ: A446R2010
Environmental: DO-160A categoreis /A2C1/B/PKS/ EXXXXXZ/BZ/AZZ EUROCAE ED-14A Temperature: -30 to +70C
Altitude: 35000 ft. max. Shock: 6 g operational
Power Requirement: 27V dc (16-32) at 0.25A Lighting Power: 5V ac/dc. 350mA or 28Vdc, 100 mA
Lighting Color: Blue-white Display Type: Gas discharge
Brightness Control: Automatic or external potentiometer Electrical Input/Output: EIA RS-422A
Input/Output Format: Commercial Standard Digital Bus (CSDB) Frequency Range: 108.000-117.975MHz (normal); strap option adds 133.00-135.95MHz
Part Number: Description:
822-2179-001 5 volt lighting, gray panel, OFF-ON controls, NO volume control; Gables P/N G7632-101; Replaces CTL-32 P/N 622-6521-001
822-2179-005 5 volt lighting, gray panel, OFF-ON controls, WITH volume control; Gables P/N G7632-103; Replaces CTL-32 P/N 622-6521-005
822-2179-007 5 volt lighting, black panel, OFF-ON controls, WITH volume control; Gables P/N G7632-104; Replaces CTL-32 P/N 622-6521-007
822-2179-009 5 volt lighting, gray panel, OFF-ON-HOLD controls, NO volume control; Gables P/N G7632-105; Replaces CTL-32 P/N 622-6521-009
822-2179-011 5 volt lighting, black panel, OFF-ON-HOLD controls, NO volume control; Gables P/N G7632-106; Replaces CTL-32 P/N 622-6521-011
822-2179-013 5 volt lighting, gray panel, OFF-ON-HOLD controls, WITH volume control; Gables P/N G7632-107; Replaces CTL-32 P/N 622-6521-013
822-2179-015 5 volt lighting, black panel, OFF-ON-HOLD controls, WITH volume control; Gables P/N G7632-108; Replaces CTL-32 P/N 622-6521-015
822-2179-025 5 volt lighting, gray panel, NORM-HOLD controls, NO volume control; Gables P/N G7632-115; Replaces CTL-32 P/N 622-6521-025



822-2179-001
- G7632-101, Nav Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-2179-015
- G7632-108, Nav Control

NSN: 6605-01-562-4242

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
