Part #:

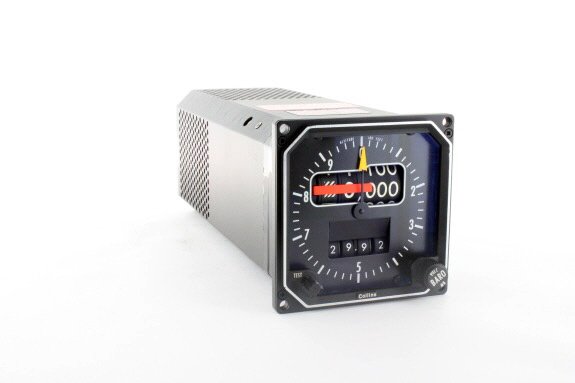

Model: ALI-80A

OEM:

Collins Aerospace

Desc:

Encoding Altimeter

Part Number :


ALI-80A



FEATURES

  • Encoding Barometric Altimeter used in multiple Collins Air Data Systems
  • Decodes the binary, self-clocking Manchester data transmitted by the central ADC, corrects for a value (in feet) equal to the baroset display and displays actual corrected altitude of the aircraft on the circular pointer/dial scale and numeric counter drum readout
  • Altitude indiacted in 100 ft. increments
  • Barometric set range is 22.00 to 32.00 inHg (inches Mercury)
  • Drum counter displays altitude in 100-ft increments from -1000 to +50000 ft.
  • Models available with black or gray bezel (see table below)
  • Models available with 5 or 28V dc, white or blue-white lighting (see table below)
  • Models available with HIRF protection
  • Model produced with Night Vision lighting



SPECIFICATIONS

FAA TSO: C10b (SAE AS-392c) C88 (SAE AS-855) EUROCAE: ED-14A
Environmental: DO-160A A2A/PKS/XXX XXXA/AB/ A/ZA/ZA Dimensions: 3.38"H x 3.38"W x 9.27"L
Weight: 3.1 lbs. Mounting: Panel-mounted, front or rear
Temperature: -30 to 70C Altitude: 15000 ft.
Power: 28 V DC, 20 W Altitude: 5 V AC/DC, 3 W 28 V DC, 3 W
Part Number: Description:
622-3975-001 Gray bezel, 5V dc blue-white lighting, Encoding Altimeter
622-3975-002 Gray bezel, 28V dc blue-white lighting, Encoding Altimeter
622-3975-003 Black bezel, 5V dc blue-white lighting, Encoding Altimeter
622-3975-004 Black bezel, 28V dc blue-white lighting, Encoding Altimeter
622-3975-005 Gray bezel, 5V dc clear white lighting, Encoding Altimeter
622-3975-006 Gray bezel, 28V dc clear white lighting, Encoding Altimeter
622-3975-007 Black bezel, 5V dc clear white lighting, Encoding Altimeter
622-3975-008 Black bezel, 28V dc clear white lighting, Encoding Altimeter
622-3975-011 Gray bezel, 5V dc blue-white lighting, HIRF, Encoding Altimeter
622-3975-014 Black bezel, 28V dc blue-white lighting, HIRF, Encoding Altimeter
622-3975-201 Encoding Altimeter
622-3975-213 Night Vision version, Encoding Altimeter


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



622-3975-001
- Encoding Altimeter
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
622-3975-003
- Encoding Altimeter
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
622-3975-004
- Encoding Altimeter

NSN: 6610-01-500-2937

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-3975-014
- Encoding Altimeter
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
622-3975-201
- Barometric Altimeter
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
