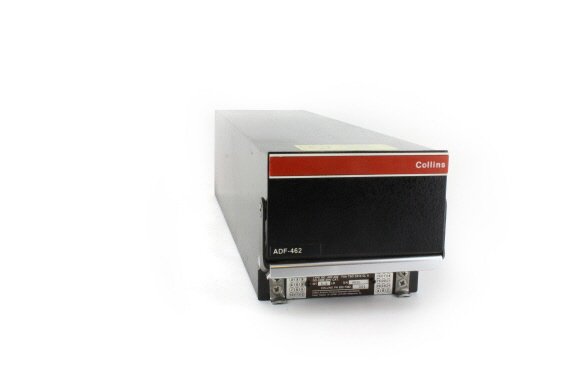

Part #: 622-7382-101

Model: ADF-462

NSN:

5821-01-327-9610

OEM:

Collins Aerospace

Desc:

ADF Receiver

Part Number :
Rockwell Collins Logo

ADF-462



FEATURES

  • Proline IV ADF Receiver
  • Provides both ARINC 429 and CSDB serial tuning capabilities
  • Proline II CTL-62 provides diagnostic read-out and CSDB tuning
  • Serial digital outputs offer compatibility with systems on current aircraft as well as systems under development
  • Internal diagnostic routines
  • Wide dynamic range
  • HF comm disable is built in



SPECIFICATIONS

TSO: C41d (Class A Environmental: DO-160B/A2E1/BB/JY/E2/XXXXXZ/ BZ/AZAAA
Weight: 3.7 lbs Temperature: -50 to 70C
Altitude: To 70000 ft. Power Requirements 28 V DC 0.6 A, including ANT
Controls: CSDB or ARINC 429 Range:: 190.0 to 1799.5 and 2179 to 2185 kHz
Tuning Increments: 500 Hz Capture Range: ±250 Hz
Operational Modes ANT, ADF, TONE (BFO/CW) Types of Reception: CW, MCW
Spurious response: -80 dB Audio output: 50 mW into 600 ohms
Accuracy: ±3° excluding quadrantal error Dimensions: 3.32"H x 3.80"H x 13.96"L
Part Number: Description:
622-7382-101 ADF Receiver



622-7382-101
- ADF Receiver

NSN: 5821-01-327-9610

Price Condition Status
$1,550.00 OH OUTRIGHT IN WORK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
