Part #: 622-4565-001
Model: 332D-11T
NSN: |
6615-01-328-1062 |
OEM: |
Collins Aerospace |
Desc: |
Vertical Gyro |
Select part number above to view pricing and availability.
| Price | Condition | Status | More Info | |
|---|---|---|---|---|
| $3,250.00 | OH OUTRIGHT | 4 IN STOCK | VIEW | |
| $1,995.00 | OH EXCHANGE | 4 IN STOCK | VIEW |
| Price | Condition | Status | More Info | |
|---|---|---|---|---|
| $4,250.00 | OH OUTRIGHT | IN WORK |
|
|
| $2,550.00 | OH EXCHANGE | IN WORK |
|

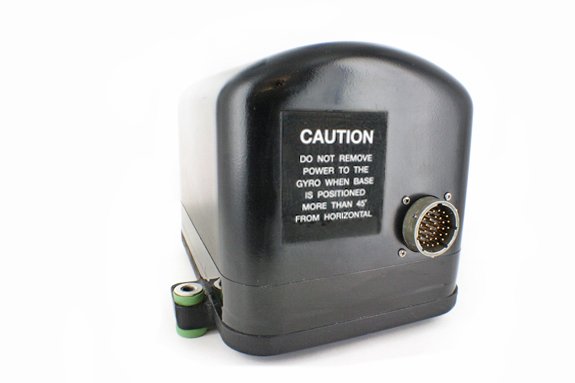

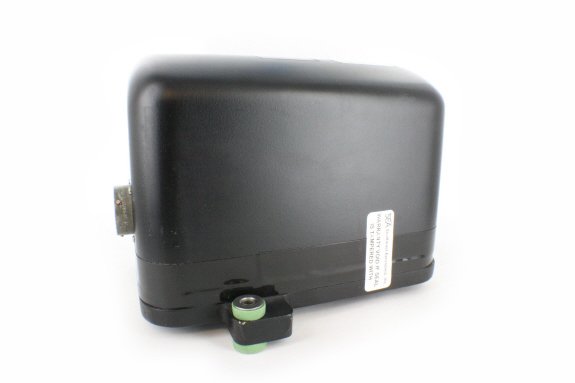

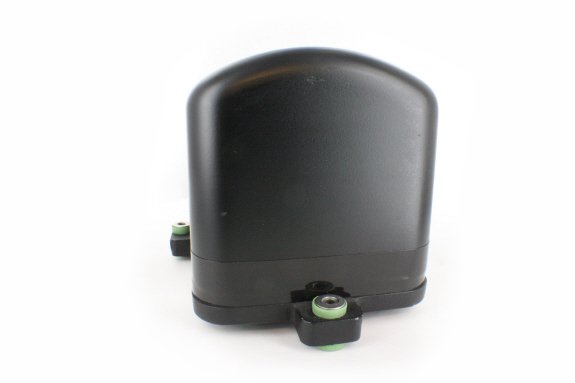

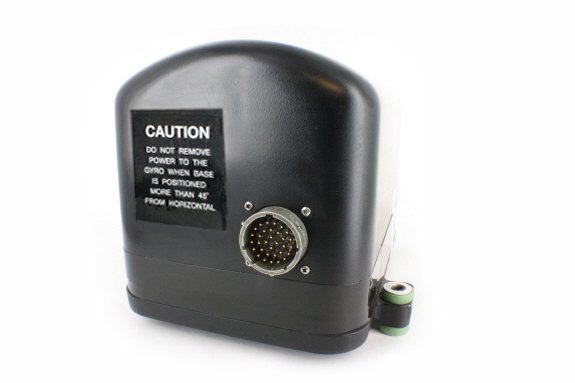

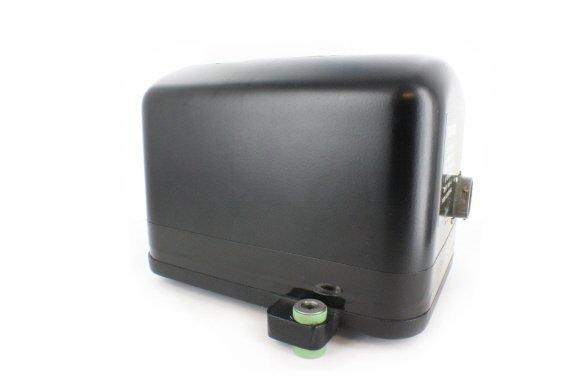

332D-11T
FEATURES
- SIMILAR to 332D-11 except it has different vibration isolators (See specifications)
- Designed for environments with excessive vibration
- Contains capabilities for fast and normal erection
- Provides monitor signal to indicate proper erection and speed
- Transmits pitch and roll attitude for flight director indicator
- A source of attitude reference information used in integrated flight systems and automatic flight control systems
- Three-wire 400 Hz synchro outputs conforming to ARINC specification are provided in both pitch and roll axes
- Equipment features built-in starting cycle, roll cutout, and monitoring circuits
- Fast erection is automatic during starting
- Both manual recycling and self-testing can readily be provided by appropriate external wiring
SPECIFICATIONS
| Size: | 5 5/8" x 6 3/16" x 7 3/4" | Weight: | 7.2 lbs |
| Connector: | Bendix Pigmy MS3112E-18-32P Mates with MS3116E-18-32S | Power Req.: | Starting: 60 VA (550 mA at 115 Vac) Running: 35 VA (300 mA at 115 Vac) |
| Output Type: | Synchro: 204 mV/degree +/-10%, 3-wire, 400 Hz synchro outputs in roll and pitch axes | Output Type: | Radar: 51 mV ac/degree +/-10%, 2-wire, transformer outputs in pitch and roll axes for radar antenna orientation |
| Output Type: | Isolated: 204 mV ac/degree =/-10%, 2-wire, electronically isolated outputs in pitch and roll axes | Output Loading: | Synchro: Up to three servoed Bendix type AY500-5 synchro control transformers or equivalent plus two 10k resistive loads |
| Output Loading: | Radar: 10k Maximum for each axis | Output Loading: | Isolated: 1k maximum for each axis |
| Null Voltage: | 40-millivolt maximum no load | Erection Cutout: | Internal: 4-9 degress bank External: Provision is made for external cutout, such as external switching rate gyro |
| Synchro Accuracy: | 20-minute maximum angular error | Erection Accuracy: | 0.5 Degree of vertical within 3 minutes after energizing |
| Output Accuracy: | +/-0.5 Degree | Roll Erection Cutout: | When bank exceeds 9 degrees |
| Erection Rate: | Normal: 1 - 3 degrees per minute Fast: 5 degrees per minute minimum | Free Drift: | 0.6 Degree per minute maximum |
| Operating Temperature: | -54C to +70C | Storage Temperature: | -65C to +70C |
| Ambient Humidity: | 0 - 95% | Altitude: | -1000 to +40000 feet |
| Vibration: | 1.5g at 17-55Hz, 1.0g at 55-2000Hz |
| Part Number: | Description: |
|---|---|
| 622-4565-001 | Vertical Gyro, with additional pitch/roll altitude info & isolated XY points. Green vibration isolators. |
| 622-4565-002 | Vertical Gyrowith Black vibration isolators. |
| Serial # | 4892 |
|---|---|
| Condition | OH |
| Mods | 21,22,24,26-28 |
| Tag Date | 11/05/24 |
| Shop | Southeast Aerospace Inc. |
| Warranty | 6 Months |
| Serial # | 3437 |
|---|---|
| Condition | OH |
| Mods | 22,23,24,26,27 |
| Tag Date | 10/23/24 |
| Shop | Southeast Aerospace Inc. |
| Warranty | 6 Months |
| Serial # | 4525 |
|---|---|
| Condition | OH |
| Mods | 21,22,24,26,27 |
| Tag Date | 06/14/24 |
| Shop | Southeast Aerospace Inc. |
| Warranty | 6 Months |
| Serial # | 3381 |
|---|---|
| Condition | OH |
| Mods | 22,23,24,26,27 |
| Tag Date | 05/07/24 |
| Shop | Southeast Aerospace Inc. |
| Warranty | 6 Months |
NSN: 6615-01-328-1062
| Price | Condition | Status |
|---|---|---|
| $3,250.00 | OH OUTRIGHT | 4 IN STOCK |
| $1,995.00 | OH EXCHANGE | 4 IN STOCK |
NSN: 6625-01-353-3975
| Price | Condition | Status |
|---|---|---|
| $4,250.00 | OH OUTRIGHT | IN WORK |
| $2,550.00 | OH EXCHANGE | IN WORK |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
Why do some parts indicate "REQUEST" or “RFQ” on the Southeast Aerospace website?
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
What is the recommended time between overhauls for the 332D-11( ) vertical gyros?
Without Service Bulletin 13, the recommended interval for overhaul is every 1000 flight hours.
With Service Bulletin 13, the recommended interval for overhaul is every 2000 flight hours.
With Service Bulletin 26, the recommended interval is overhaul is every 3000 flight hours.
