Part #: 522-4945-001

Model: 323A-2G

NSN:

5895-01-013-0720

OEM:

Collins Aerospace

Desc:

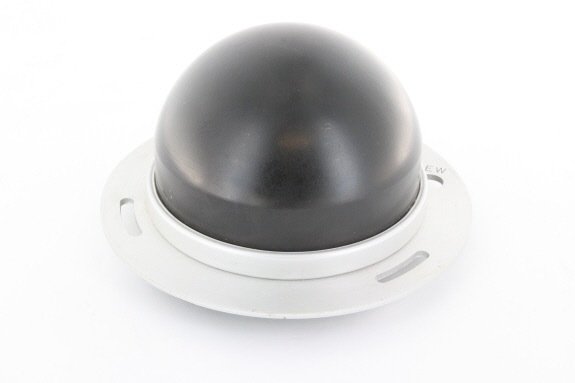

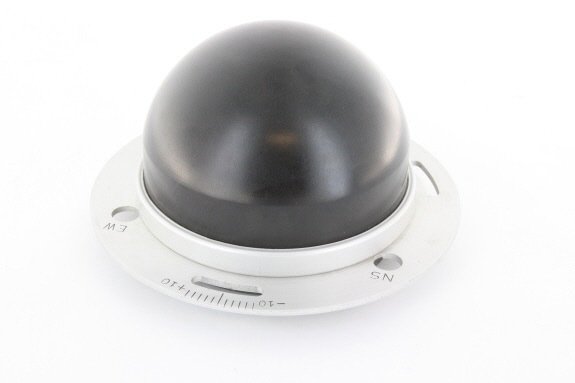

Flux Detector

Part Number :


323A-2G



FEATURES

  • Flux Detector used in PN-101 Pictorial Navigation System
  • Pendulous sensing element detects the direction of the earth's magnetic field



SPECIFICATIONS

Dimensions: 4.781"W x 2.687"H x 4.781"L Weight: 1.5 lbs.
Connectors: 6 individual no. 8 terminal posts with locking nuts Temperature Range: -55 to +70C (operating)
Altitude: -1000 to 50000 feet Audible Noise: None
Power Source: 26 volts, 400 Hz Output Frequency: 800 Hz
Part Number: Description:
522-4945-001 Flux Detector



Serial # 3126
Condition SV
Mods None
Tag Date 05/23/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
522-4945-001
- Flux Detector

NSN: 5895-01-013-0720

Price Condition Status
$995.00 SV OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Most of the Collins Proline I components were originally manufactured in the early 1970s. Collins has continued to produce some of the Proline I components by special order over the past 30 years however large scale production stopped many years ago. Most of the Collins Proline I product lines incorporates 1960s and 70s analog technology. Collins has superseded the Proline I product line several times with the Proline II, Proline IV, and Proline 21 lines. As a result, some service parts needed to maintain and repair original Collins Proline I components are no longer available. Therefore, you may experience limited to no warranty available and unreliability for many of the Proline I units.

Southeast Aerospace offers many affordable, upgradeable options that are available for aircraft with Collins Proline I. As avionics integration specialists and premiere Collins dealer, Southeast Aerospace is experienced and knowledgeable on all Collins Proline generations.

If you are interested in upgrading any of your original Collins Proline I systems, please contact us for the most reasonable, optimal choice available.
