Model: KI-825

OEM:

BendixKing

Desc:

Electronic HSI w/ Black Bezel

Part Number :


KI-825



FEATURES

  • Electronic Horizontal Situational Indicator (EHSI)

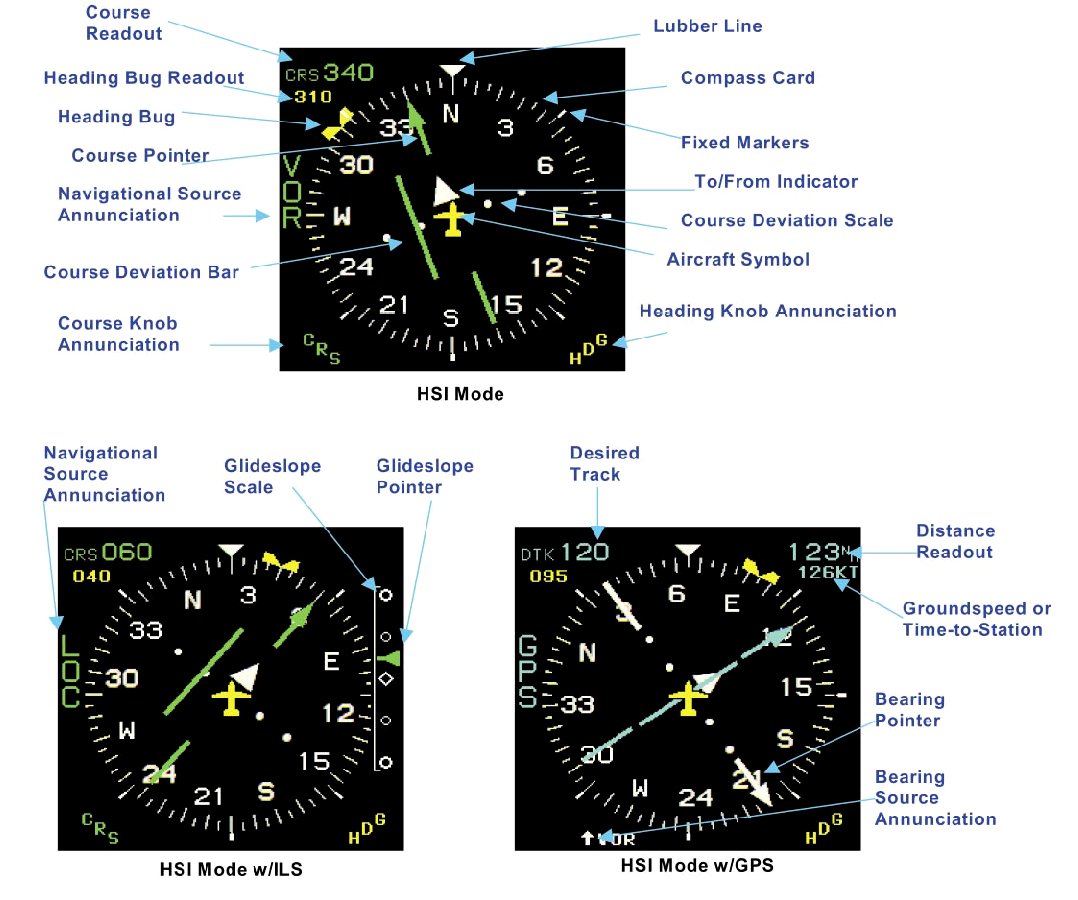

  • Provides display and overlays of Heading, VOR NAV, GPS, and Lightning data (see Screens)
  • 3 inch ATI format

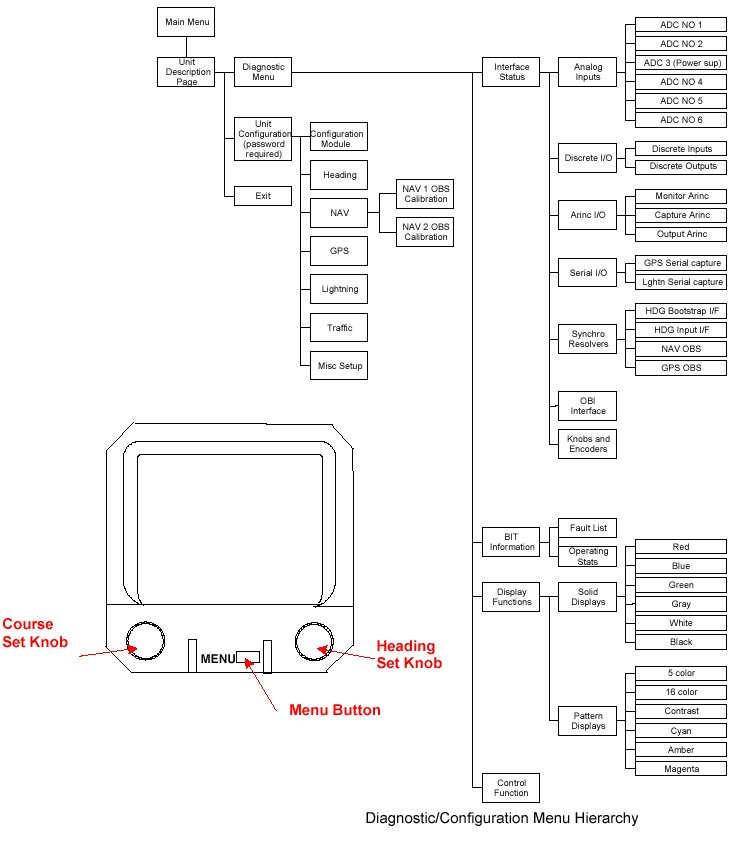

  • Uses a combination of menu selections stored internally and/or optional external configuration module to determine specific instrument functionality required by particular aircraft installation (see Configuration)
  • Dimming and backlighting adjustable
  • Able to select between four navigation sources - VOR1, VOR2, GPS1, GPS2
  • Annunciation provided to indicate nav source (see above)

(Note: nav source annunciation may not be displayed if external relay switching is used in aircraft instead of KI-825 internal switching)

  • Version available with Night Vision Goggle capability (see table below)
  • Original production versions (-0X01) do not include external nav source switching configuration which allows the selected NAV source to be changed by compatibe nav unit or by external switch (see table below)
  • Original production versions (-0X01) do not include selected course retention configuration which allows the selected CRS to remain set to the same bearing between NAV and GPS sensor changes (see table below)
  • 11-33 VDC power input
  • Two-year, 5000 hour warranty
  • Retrofit kit available for KCS-55A HSI (KI-525A) replacement

(Note: Connector modification required for KI-825/KI-525A retrofit - i.e. 3 wires to existing connectors and addition of 3rd KI-825 connector) (In addition, power from KI-825 is direct from circuit breaker unlike KI-525A whose power is direct from KG-102A) Click Here to view Pilots Guide (important! - Please read section of Pilots Guide pertaining to VOR1/2, GPS1/2 switching)

COMPATIBLE INTERFACES
Heading:
  • Bendix/King KCS-55A via KG-102A DG
  • Bendix/King KCS-305 via KSG-105 DG (note: 26VAC, 400Hz power source required)
  • Collins MC-102 via 328A-2A compass amp (note: 26VAC, 400Hz power source required)
  • Collins MC-103 via 328A-5 compass amp (note: 26VAC, 400Hz power source required)
  • Sperry C-14 and C-14A gyrosyn compass (note: 26VAC, 400Hz power source required)
GPS:
  • Bendix/King KLN-89 / KLN-89B / KLN-94 (analog and RS-232 interface type)
  • Bendix/King KLN-90B / KLN-900 (ARINC 429 interface type)
  • Garmin GPS-400 / GNC-420 / GNS-430 (ARINC 429 interface type)
  • Garmin GPS-500 / GNS-530 (ARINC 429 interface type)
NAV:
  • Bendix/King KX-155 / KX-155A (analog interface type - KN-72 Converter required)
  • Bendix/King KX-165 / KX-165A (analog interface type)
  • Bendix/King KNR-634A (ARINC 429 interface type)
  • Garmin GNC-420 / GNS-430 / GNS-530 (Analog or ARINC interface type)

Stormscope/Lightning:

  • L3/Goodrich WX-500



SPECIFICATIONS

Size: 3.26"W x 3.2"H x 9.47"L Weight: 3.00 lbs.
Power Input: 14 or 28VDC Power Dissipation: 50 watts w/o heaters
Typical Current Draw: 0.95 amp @ 28VDC; 2.0 amp @ 14VDC, heaters off Max Current Draw: 1.43 amp @ 28VDC; 2.86 amp @ 14VDC, heaters off
Viewing Envelope: Horizontal: +-45 deg, Vertical: +-40 deg (above), -25 deg (below); min. distance 10", max distance 40" Viewing Angle: Horizontal: +-45 deg, Vertical: +-40 deg (above), -25 deg (below) at a CR 10:1
Temperature Range: -20 to +70C TSO Compliance: TSO C113
Part Number: Description:
066-01179-0101 Black Bezel, original production, superseded by -0103
066-01179-0103 Black Bezel, replacement for -0101 with upgraded functions listed above, superseded by -0104
066-01179-0104 Black Bezel, replacement for -0101 or -0103 with WAAS Software Upgrade
066-01179-0201 Gray Bezel, original production, superseded by -0203
066-01179-0203 Gray Bezel, replacement for -0201 with upgraded functions listed above, superseded by -0204
066-01179-0204 Gray Bezel, replacement for -0201 or -0203 with WAAS Software Upgrade
066-01179-0301 Black Bezel, NVG, original production, superseded by -0303. Export License Required
066-01179-0303 Black Bezel, NVG, replacement for -0301 w/upgraded functions listed. Export License Required
066-01179-0304 Same as 0303 but with WAAS software upgarde. Export License Required
066-01179-0401 Gray Bezel, NVG, original production, superseded by -0403. Export License Required
066-01179-0403 Gray Bezel, NVG, replacement for -0401 w/upgraded functions listed. Export License Required
066-01179-0404 same as 0403 but with WAAS software upgrade. Export License Required
Part Number:  Lighting P/N:
80-5205-2-2 Same as 066-01179-0101 (Black)
80-5205-3-2 Same as 066-01179-0201 (Gray)
80-5205-2-3 Same as 066-01179-0103 (Black)
80-5205-3-3 Same as 066-01179-0203 (Gray)
80-5205-2-4 GPS-WAAS Upgrade, Same as 066-01179-0104 (Black)
80-5205-3-4 GPS-WAAS Upgrade, Same as 066-01179-0204 (Gray)





066-01179-0101
- 80-5205-2-2 Electronic HSI w/ Black Bezel

NSN: 5826-01-504-9312

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-01179-0103
- 80-5205-2-3 Electronic HSI w/ Black Bezel

NSN: 5826-01-504-9312

Price Condition Status
RFQ RFQ RFQ
066-01179-0104
- 80-5205-2-4 Electronic HSI (Black, WAAS)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-01179-0203
- 80-5205-3-3 Electronic HSI w/ Gray Bezel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-01179-0303
- 80-5205-4-3 Electronic HSI NVIS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-01179-0304
- 80-5205-4-4 EHSI (WAAS, NVIS)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-01179-0404
- EHSI (WAAS, NVIS)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

No. Although, the KI-825 uses the same two 41 pin type connectors that the KI-525 has, there are several wiring differences between them. Also, the KI-825 has a third 50 pin connector that is used for the expanded features of the KI-825 such as Nav/GPS switching. The KI-825 utilizes a configuration module to store settings and parameters that must be programmed into the KI-825 to use the additional functions and features of it.
Many avionics systems require a configuration or setup process. This process is required to interface certain avionics systems to other systems in the aircraft that will be inputting or outputting information to and from these systems. Some examples of systems that require a configuration or setup process include:

Autopilot
EFIS
GPS
EGPWS
EHSI
RADAR
TAWS
TCAS


In addition, most newer technology or solid state systems require configuration via computer interface of some type. A qualified avionics technician should always refer to the appropriate manufacturer's installation manual for complete information and instructions.
The KCM-100 configuration module can interface to the KI-825 to retain programming information in case of unit replacement. If the configuration module is not interfaced to the KI-825, then the configuration data will be stored only in the internal non-volatile memory of the KI-825.
Yes, Honeywell Sales Bulletin 2011-26 enable the KI-825 to display WAAS vertical deviation when GPS is selected as the nav source. Connection to a WAAS GPS receiver is required.

The upgrade enables the KI-825 to display vertical and lateral deviations when the active sensor is WAAS GPS. This allows the autopilot to be coupled to the KI-825 display when flying an LPV WAAS Precision Approach. The upgrade also enables autopilot outputs and display of lateral deviations and vertical guidance when on other types of WAAS GPS approaches.
