Part #: 066-3063-00

Model: KI-227

NSN:

6605-01-268-8665

OEM:

BendixKing

Desc:

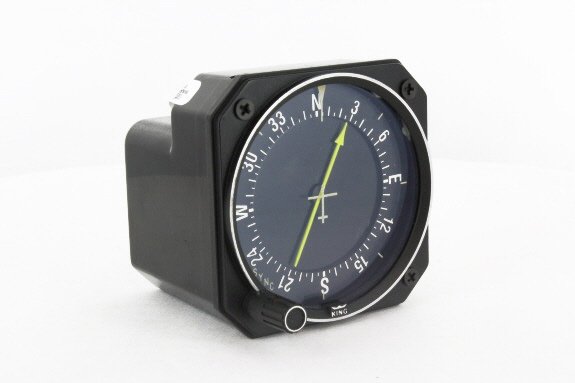

ADF Indicator

Part Number :


KI-227



FEATURES

  • Single needle ADF indicator for use with KR-87 ADF receiver, KA-44 or KA-44B ADF antennas
  • Manually rotated compass card (-00 version)
  • Optically coated, non-reflecting glass lens
  • Model available (-01) that takes heading input from KCS-55A Compass System to drive the compass card and display magnetic heading (see table below)
  • Compass card in -01 is synchronized to the KI-525A HSI compass card by rotating SYNC knob
  • TSO'd



SPECIFICATIONS

Size: 3.26"W x 3.26"H x 2.73"L Weight: 0.7 lbs.
TSO Compliance: TSO C41c Class A, DO-160 Env. Cat A1D1/A/SKP/XXXXXX/ZBABA Humidity: 95% + RH at 50C for 48 hours
ADF Bearing Input: DC sine and cosine voltages, +-3.0VDC max across each winding Power Requirements: Lighting: 14VDC at 0.16A or 28VDC at 0.08A
Power Requirements: Compass Card Drive: 12VDC at 0.12A Compass Card Input: (-01) only) 2 phase digital stepper motor signals from KCS-55/55A Compass System
SEE ALSO KR-87, KA-44, KA-44B
Part Number: Description:
066-3063-00 With manual heading selector
066-3063-01 With manually synchronized stepper motor drive for heading selector



Serial # 31029
Condition SV
Mods None
Tag Date 11/03/23
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 36243
Condition SV
Mods None
Tag Date 11/03/23
Shop Southeast Aerospace Inc.
Warranty 6 Months
066-3063-00
- ADF Indicator

NSN: 6605-01-268-8665

Price Condition Status
$495.00 SV OUTRIGHT 2 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-3063-01
- ADF Indicator

NSN: 5210-01-354-6942

Price Condition Status
$375.00 SV OUTRIGHT IN WORK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

None, they represent the same unit. Original King Radio part numbers were 9 digits. For example, 066-3056-01. During the Bendix and King merger (i.e. Bendix/King), a new part numbering system was created that converted these 9 digit part numbers to 12 digits. Therefore, 066-3056-01 became 066-03056-0001. Despite this numbering change, units that were originally from the King Radio design still have the 9 digit part number format on the unit dataplate. The 12 digit format for King units appears to be used for catalog and internal Honeywell purposes only. Therefore, any unit that has a zero in its third to last number (i.e. XXX-XXXX-X0XX) has a 9 digit part number (i.e. XXX-XXXX-XXX) on its dataplate / ID Plate.
In January 1989 Bendix/King changed from a nine digit to a twelve digit part numbering system. The new, larger 12 digit numbers allowed for the inclusion of software version into the last two digits of the part number for certain units in which software changed frequently such as EFIS and TCAS processors. Therefore, the two digits immediately preceding the software version indicate the hardware version of the unit.

Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.

The use of a Radio Magnetic Indicator in an aircraft offers several benefits that improve navigation situational awareness and pilot workload.

A very basic ADF indicator without a moveable compass card simply points to a selected beacon. The pilot must calculate the bearing needed based on the aircraft's current heading. Most if not all ADF indicators without a knob to turn the compass ca rd are very old and obsolete.

Most ADF indicators include a knob to turn the present heading so that the bearing to the beacon can be read against the compass card.





The RMI provides all of the ADF indicator functions with automatic rotation of the compass card via the aircraft's compass system. Therefore, whenever the aircraft turns then the compass card will turn.

An RMI always automatically points to the bearing to a beacon. This is a more logical form of indication even over VOR type of navigation since there is no OBS, To-From, radials, etc.










More advanced RMI indicators offer even more flexibility and features by offering dual needle for ADF and VOR bearing and multiple ADF/VOR navigation.















Not completely. The -01 versions include a stepper motor that is driven from the directional gyro within the compass system. Therefore, when the aircraft turns, both the compass card on the HSI and ADF indicator will turn accordingly. Unlike an RMI, however, these ADF indicators must be synchronized to the HSI compass card by rotating the SYNC knob until its heading matches the HSI. An RMI automatically updates the heading on the compass card.
