Part #:

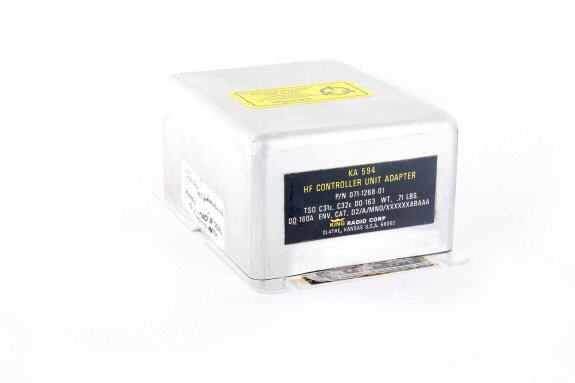

Model: KA-594

OEM:

BendixKing

Desc:

HF Control Adapter

Part Number :


KA-594
FEATURES
  • HF Bus Adapter needed to use small KFS-594 control with KHF-950 HF System
  • Decodes data from KHF-950 System or the KFS-594 controller for frequency/channel and tune monitoring
  • Self-contained as is wired between KHF-950 and KFS-594
  • -00 unit has LSB (Lower Sideband) option strappable inside unit
  • -01 unit has LSB option strappable at the interconnect



SPECIFICATIONS

Size: 3.30"W x 2.04"H x 4.80"L Weight: .71 lbs.
TSO Compliance: TSO C31c, C32c; DO-160A Env. Cat. D2A/MNO/XXXXXXABAAA Power Requirements: +5VDC +5% 350mA; +12VDC +5% 100mA; -26VDC +5% 35mA
Part Number: Description:
071-1268-00 LSB option internally strappable, HF Control Adapter
071-1268-01 LSB option strappable at interconnect, HF Control Adapter



071-1268-01
- HF Control Adapter

NSN: 5895-01-419-3191

Price Condition Status
$1,750.00 OH OUTRIGHT 2 IN STOCK
$950.00 OH EXCHANGE 2 IN STOCK
071-1268-00
- HF Control Adapter
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

None, they represent the same unit. Original King Radio part numbers were 9 digits. For example, 066-3056-01. During the Bendix and King merger (i.e. Bendix/King), a new part numbering system was created that converted these 9 digit part numbers to 12 digits. Therefore, 066-3056-01 became 066-03056-0001. Despite this numbering change, units that were originally from the King Radio design still have the 9 digit part number format on the unit dataplate. The 12 digit format for King units appears to be used for catalog and internal Honeywell purposes only. Therefore, any unit that has a zero in its third to last number (i.e. XXX-XXXX-X0XX) has a 9 digit part number (i.e. XXX-XXXX-XXX) on its dataplate / ID Plate.
In January 1989 Bendix/King changed from a nine digit to a twelve digit part numbering system. The new, larger 12 digit numbers allowed for the inclusion of software version into the last two digits of the part number for certain units in which software changed frequently such as EFIS and TCAS processors. Therefore, the two digits immediately preceding the software version indicate the hardware version of the unit.

Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
