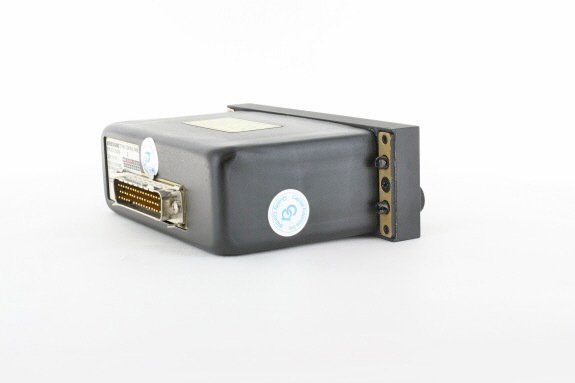

Part #: 071-01439-3100

Model: CP-467

NSN:

1680-01-415-5770

OEM:

BendixKing

Desc:

EFIS Control

Part Number :

CP-467



FEATURES

  • EFIS control panel with DH set and test
  • A control panel option for the EFS-40/50 systems
  • Used when the system is configured as an ADI/HSI and controls system operating mode and testing the EFS-40 and the radio altimeter
  • Controls the presentation displayed on the ED-551A Display Unit when it is utilized as an EHSI or EADI
  • Allows the pilot to select the desired display format, such as standard compass rose or sectored compass rose, 360° map or sectored map and weather radar overlay
  • Has course and heading select knobs with auto sync
  • The auto sync feature will slew the heading bug to the lubber line or the course pointer to the DIRECT TO course for the selected NAV sensor providing a centered D-Bar



SPECIFICATIONS

TSO Compliance:  TSO C113, SAE AS-8034, RTCA DO-160B Size: 1.87"H x 5.74"W x 3.312"L (nominal)
Weight: 0.97 lbs nominal Temperature Range: -40°C to +55°C
Altitude:   55,000 ft. max. Power Requirements: All units require: +7 ± 0.2Vdc @ 0.040 amps max supplied by the symbol generator Units -3100 & above also require: +27.5 ± 0.5Vdc @0.070 amps max
Part Number: Description:
071-01439-0100 Black,   5 Vdc Lighting, EFIS Control
071-01439-0200  Black, 28 Vdc Lighting, EFIS Control
071-01439-0300  Gray,    5 Vdc  Lighting, EFIS Control
071-01439-0400  Gray,   28 Vdc Lighting, EFIS Control
071-01439-0500  Black,    5 Vac Lighting, EFIS Control
071-01439-0600  Gray,      5 Vac Lighting, EFIS Control
071-01439-3100  Black, 5Vac/5Vdc/28Vdc Lighting, HIRF/Lighting, EFIS Control
071-01439-3200  Gray,  5Vac/5Vdc/28Vdc Lighting, HIRF/Lighting, EFIS Control
071-01439-3300  Black, 5Vac/5Vdc/28Vdc Lighting/Red Lighting, HIRF/Lighting



Serial # 3076
Condition SV
Mods 1-2
Tag Date 05/15/24
Shop Duncan Aviation - Lincoln
Warranty 6 Months
Serial # 3129
Condition SV
Mods 1,2
Tag Date 05/14/24
Shop Duncan Aviation - Lincoln
Warranty 6 Months
071-01439-3100
- EFIS Control

NSN: 1680-01-415-5770

Price Condition Status
$2,250.00 SV OUTRIGHT 2 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01439-3200
- EFIS Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
