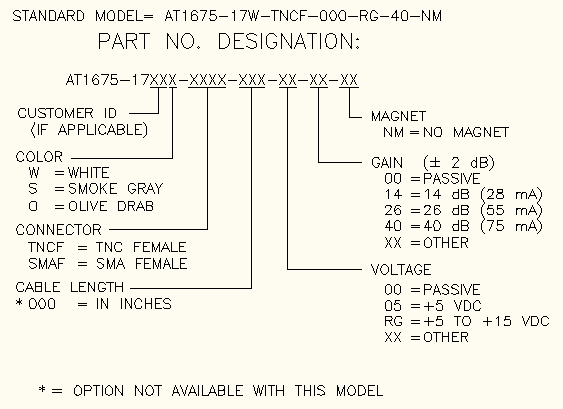

Part #: | AT1675-17W-TNCF-000-RG-40-NM |
---|---|
Model: | AT1675-17W-TNCF-000-RG-40-NM |
Desc: | GPS/ GNSS Antenna |
OEM: | AeroAntenna |
NSN: | |
---|---|
Sched-B: | 8529104000 |
ECCN: | 7A994 |
SPECIFICATIONS
frequency: | 1590 ± 25Mhz, 1238 ± 21.5 Mhz | polarization: | Right hand circular |
axial ration: | 3 dB Max at bore sight | Lightning protection: | DC Grounded |
pattern: | Omni-directional cosine/EL | RADIATION COVERAGE: | Elevation Angle >15° 10° 5° 0° Minimum Gain -2.0 dBic -3.0 dBic -4.5 dBic -7.5 dBic |
noise figure: | 2.5 dB Maximum | impedance: | 50 Ω |
vswr: | ≤2.0:1 | band rejection: | 20 dB |
power handling: | 1 Watt | gain: | Passive, 14 dB, 26 dB, 40 dB, xx=other, specify on order |
voltage: | Passive, + 5 VDC, +5 to + 15 VDC, XX=other, specify on order | connector: | TNC or SMA Female, specify on order |
COLOR: | White, Smoke Gray, or Olive Drab, specify on order | finish: | Ployurethane enamel, Fluid resistant |
operating temparture: | -55° to +85°C | WEIGHT: | 8 oz. Maximum |
altitude: | 55,000 | tso: | C-144 |
DESIGN TO MEET: | D0-160D, ENV CAT: F2-ABB[S(CLMY)U(FF1)[XSFDSZXXXXPX[A3][2A]CX, ARINC 743 FOOTPRINT |
Part Number: | Description: |
---|---|
AT1675-17W-TNCF-000-RG-40-NM | GPS/ GNSS Antenna |
Serial # | 6188 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 10/29/24 |
Shop | AeroAntenna Technology, Inc. |
Warranty | 1 Year |
Serial # | 6189 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 10/29/24 |
Shop | AeroAntenna Technology, Inc. |
Warranty | 1 Year |
Price | Condition | Status |
---|---|---|
$2,600.00 | NEW OUTRIGHT | 2 IN STOCK |
